Slime Resort

Physarum Form-Finding at Badab Surt, Golestan

  • Academic
  • Physarum
  • Ladybug
  • Grasshopper
  • Resort
  • Iran

A speculative resort at Badab Surt, Golestan, where slime-mold circulation and Ladybug environmental analysis together drive site positioning and building form.

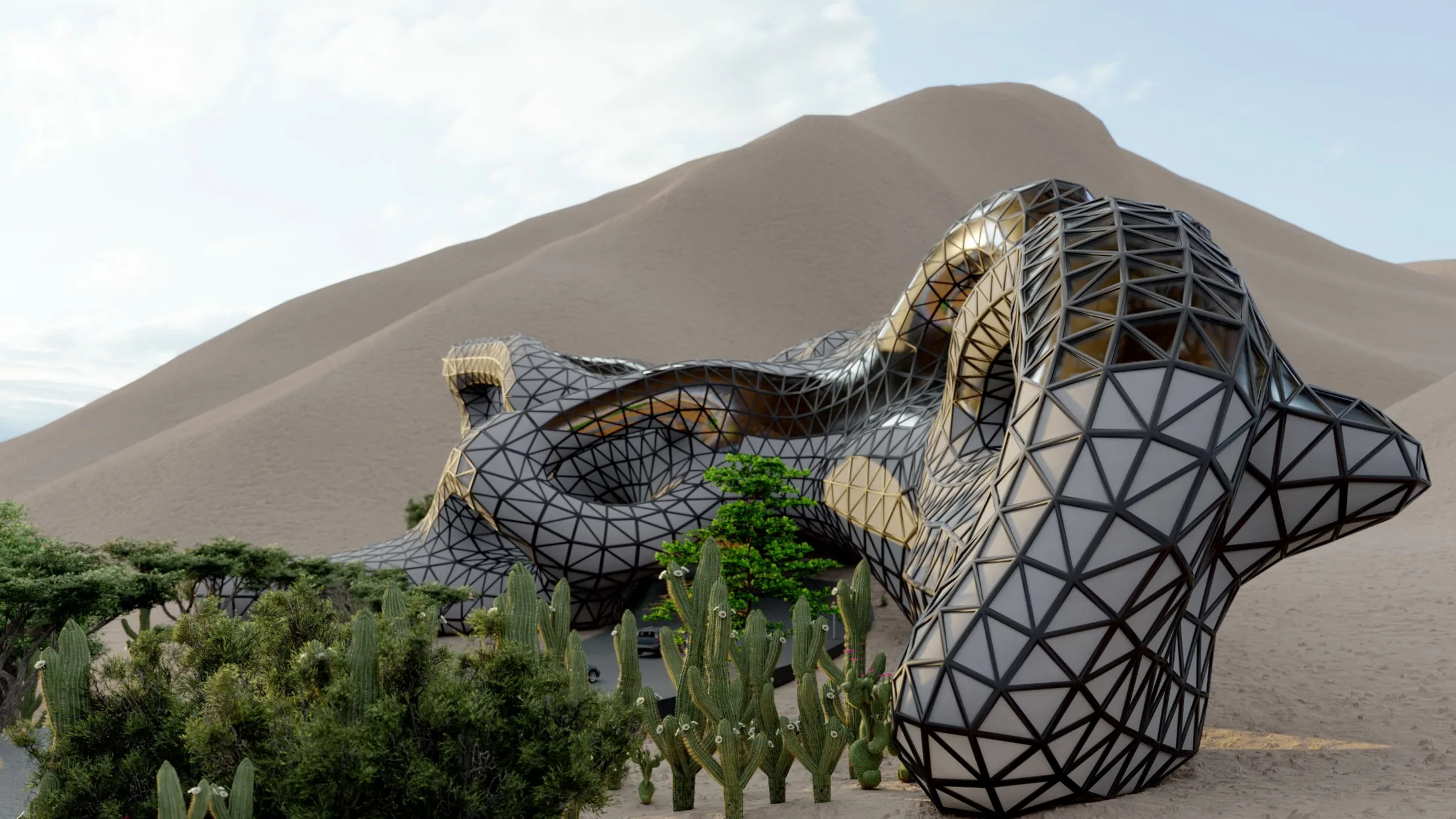

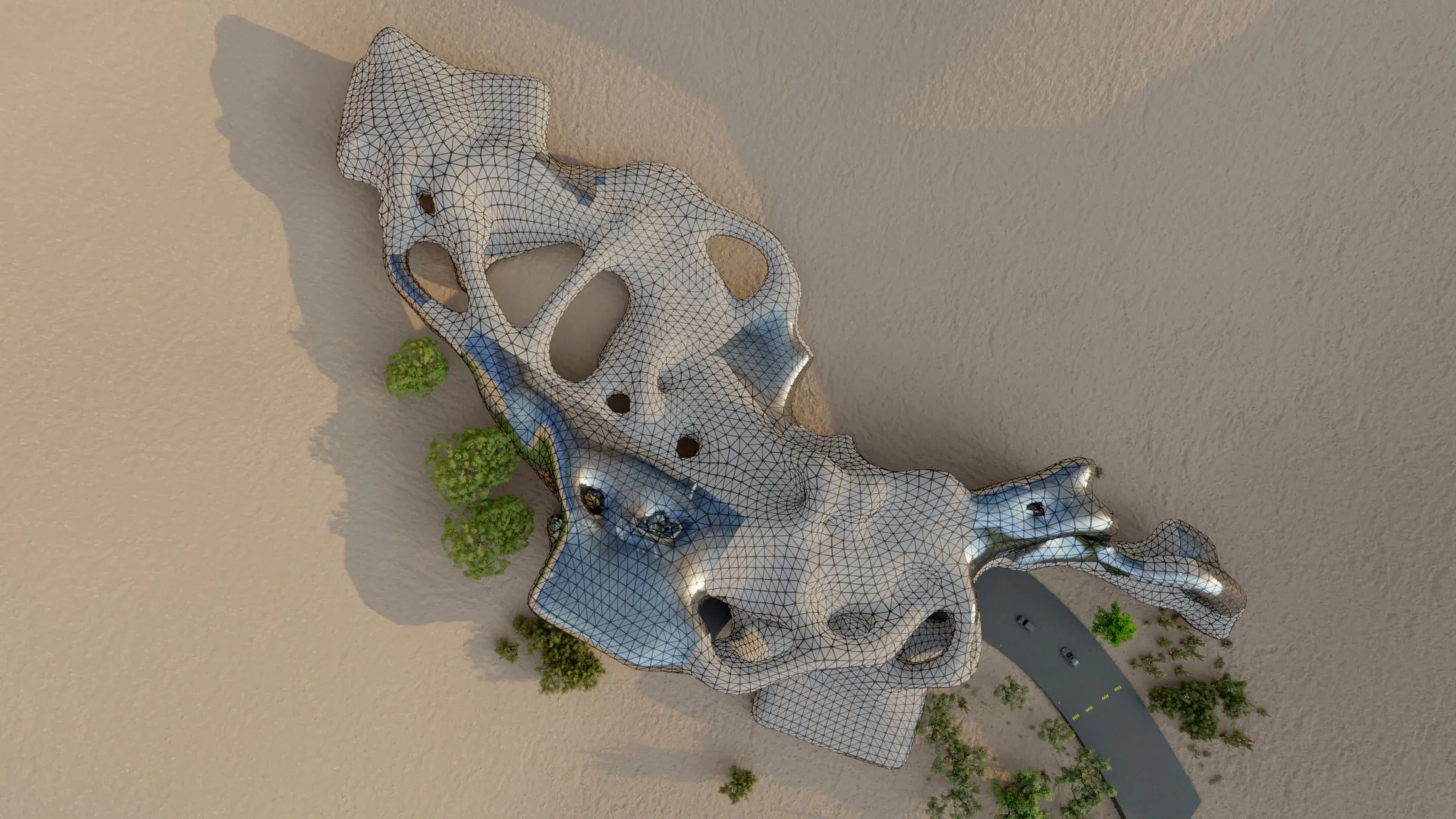

Organic lattice resort nestled among desert dunes
Slime Resort, Badab Surt, 2022

Overview

Slime Resort draws from biological computation, specifically the behavior of slime molds, to generate circulation and connectivity across the site. Using the Physarum algorithm, which models nutrient optimization, the building's plan evolved from simulated pathways connecting food-source nodes representing programmatic spaces.


Process

The process began with site analysis through Grasshopper's Ladybug plugin, evaluating environmental performance and mapping optimal regions. The slime-mold simulation then produced efficient, non-redundant circulation networks that became the project's spatial backbone, forming sub-lobbies and structural nodes at intersections. This fusion of data-driven environmental analysis and biological modeling allowed the architecture to self-organize through algorithmic logic.

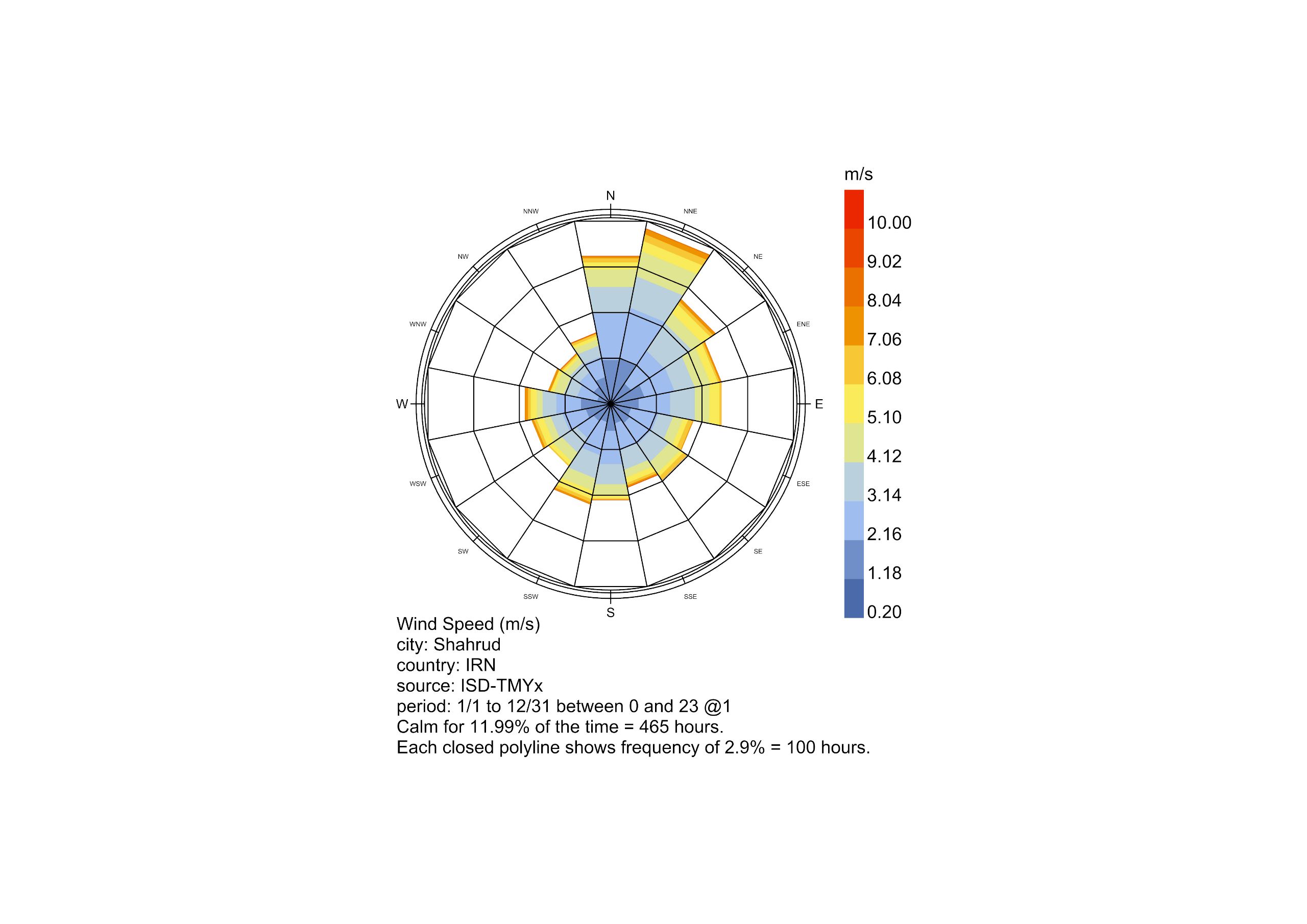

Wind rose diagram for site wind speed
Wind rose, speed

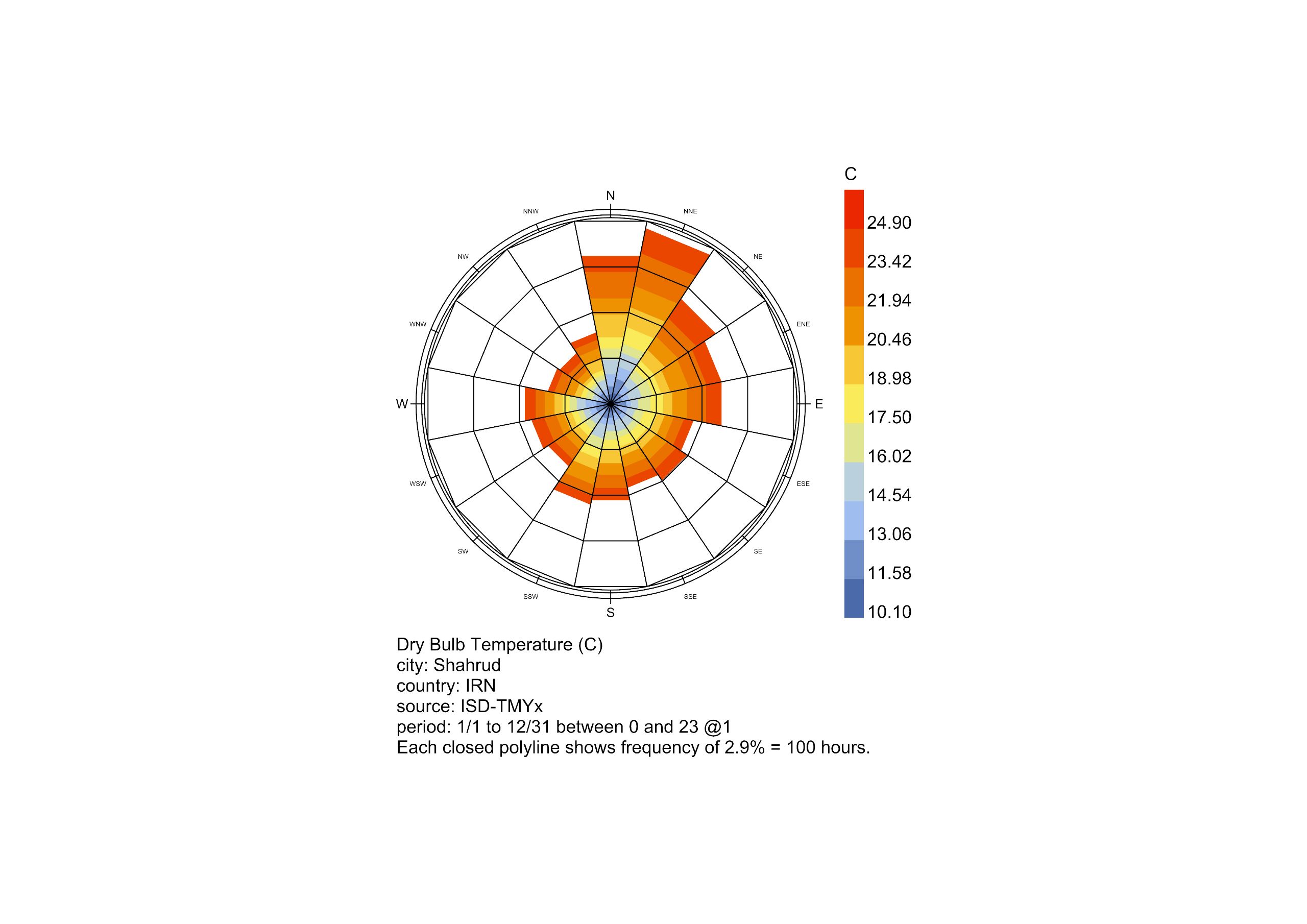

Wind rose diagram for site temperature
Wind rose, temperature

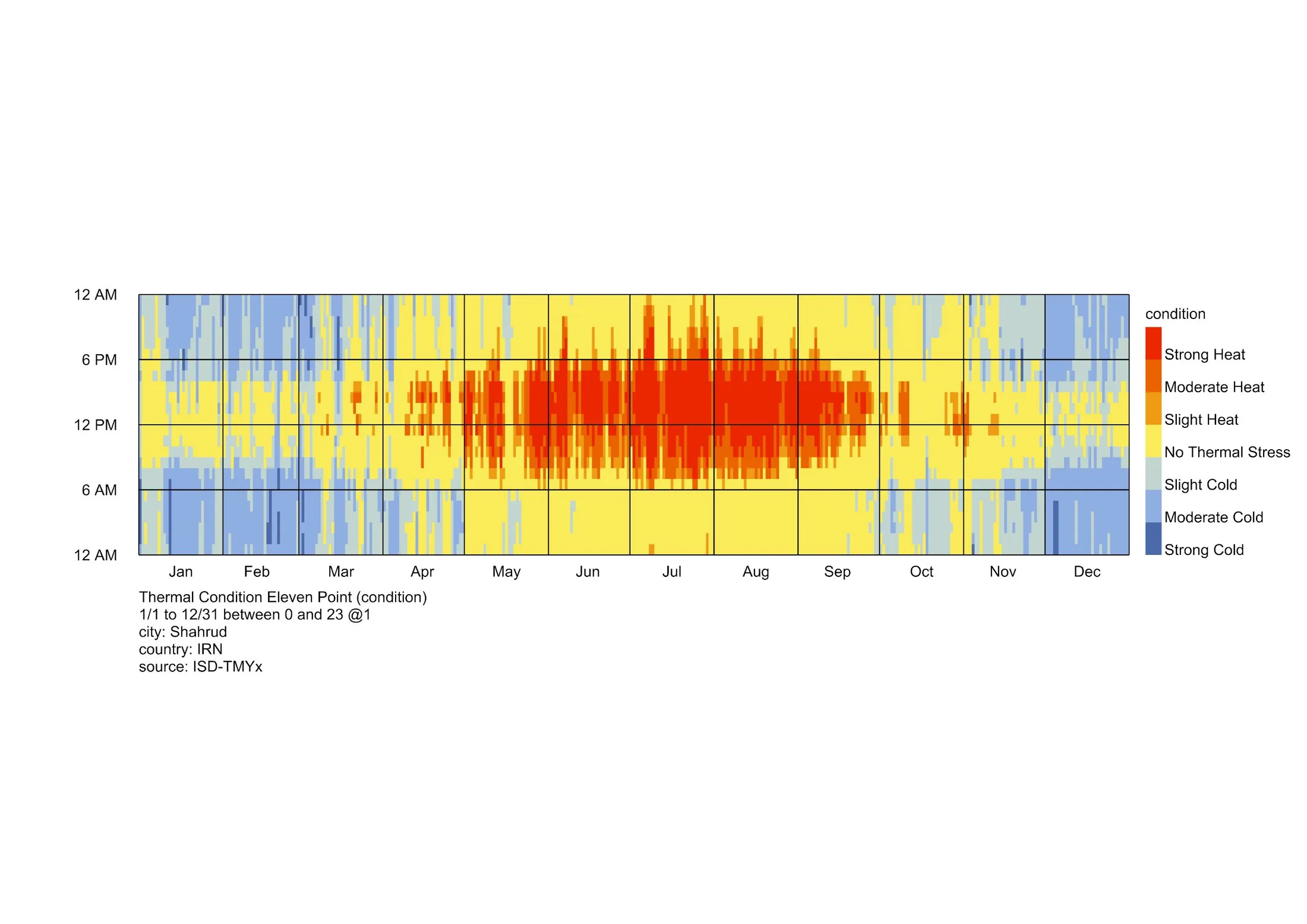

Outdoor comfort heatmap with sun and wind
Outdoor comfort: sun + wind

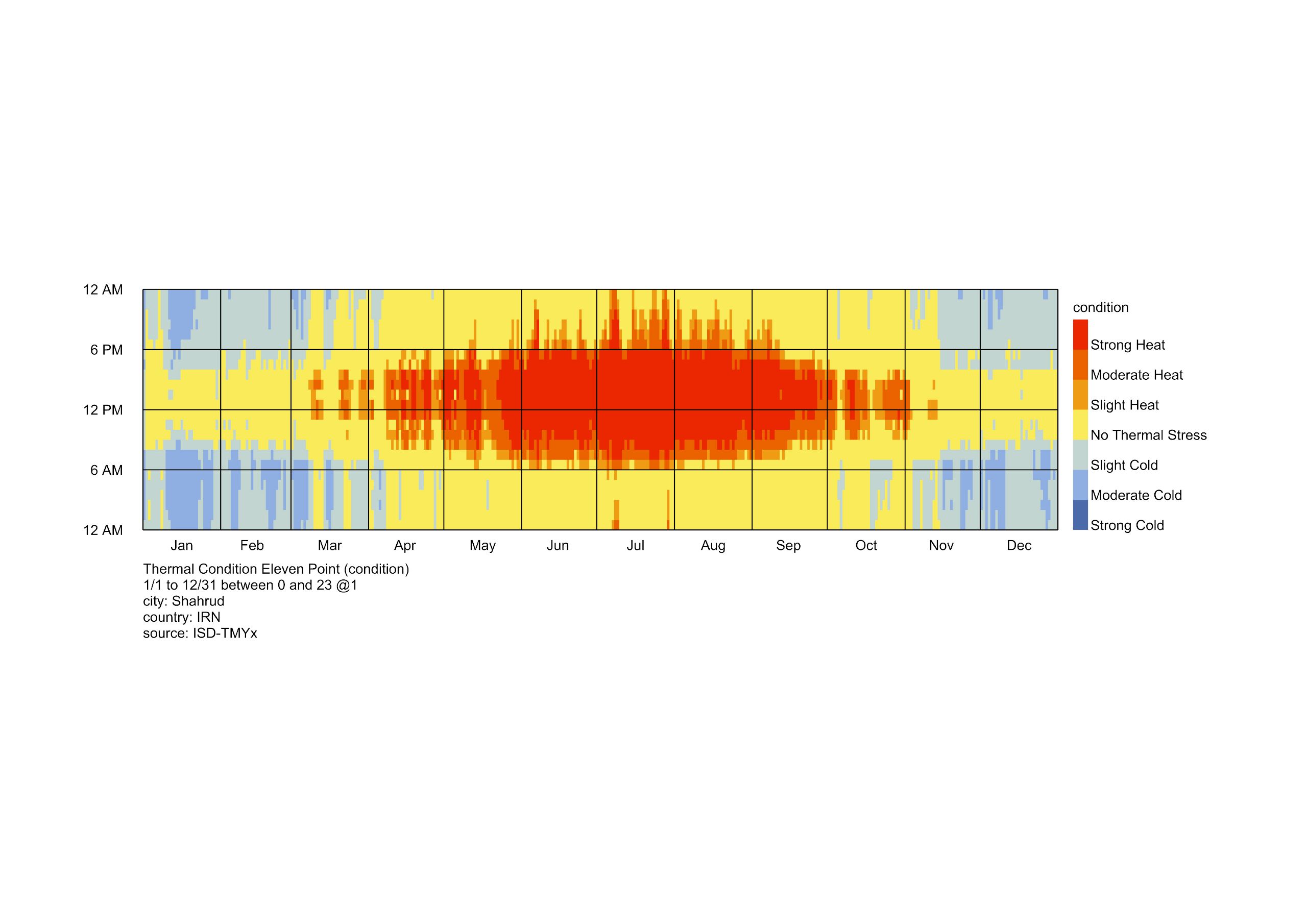

Outdoor comfort heatmap with sun no wind
Outdoor comfort: sun, no wind

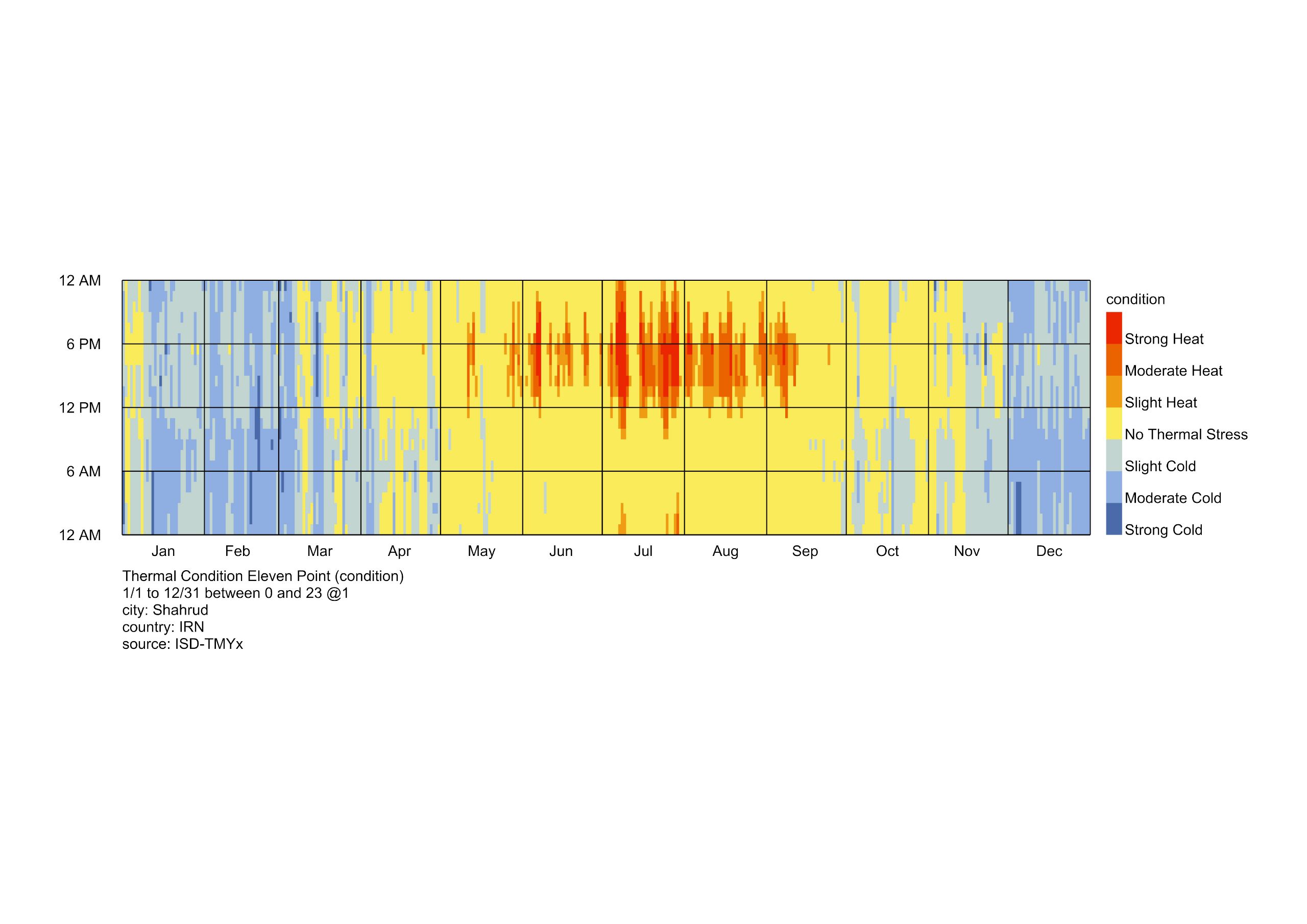

Outdoor comfort heatmap no sun with wind
Outdoor comfort: no sun, wind

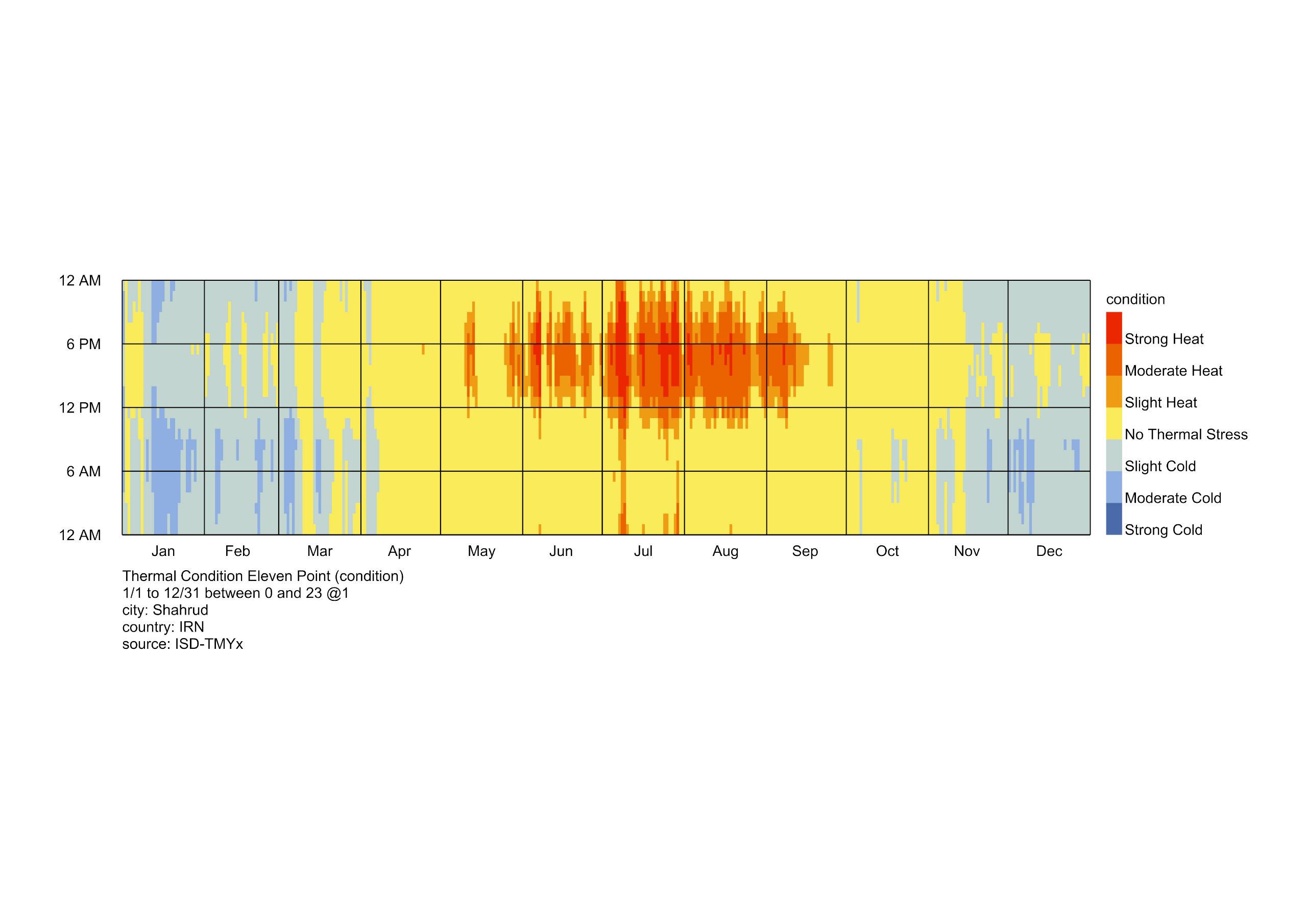

Outdoor comfort heatmap no sun no wind
Outdoor comfort: no sun, no wind

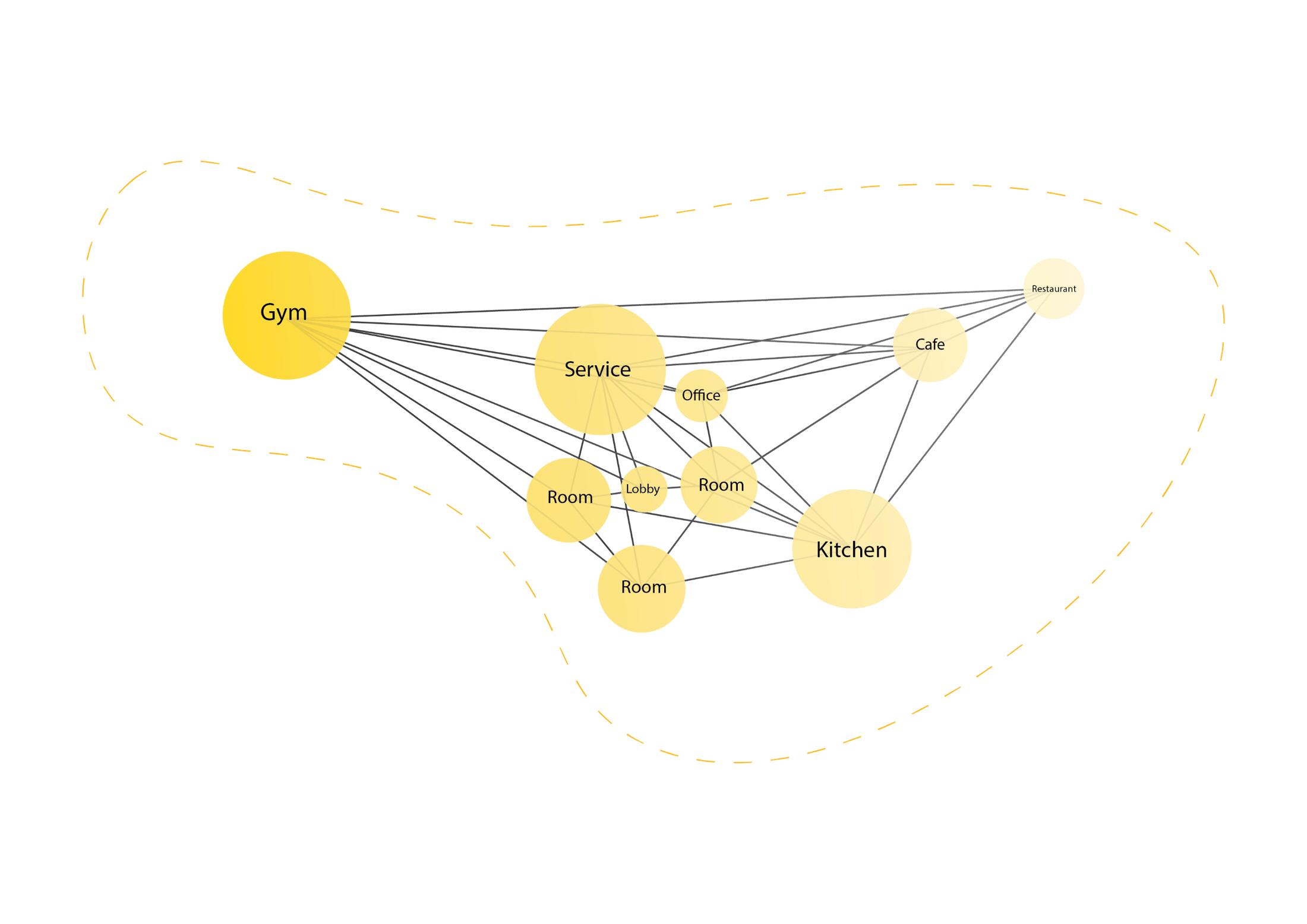

Program bubble network diagram
Program network

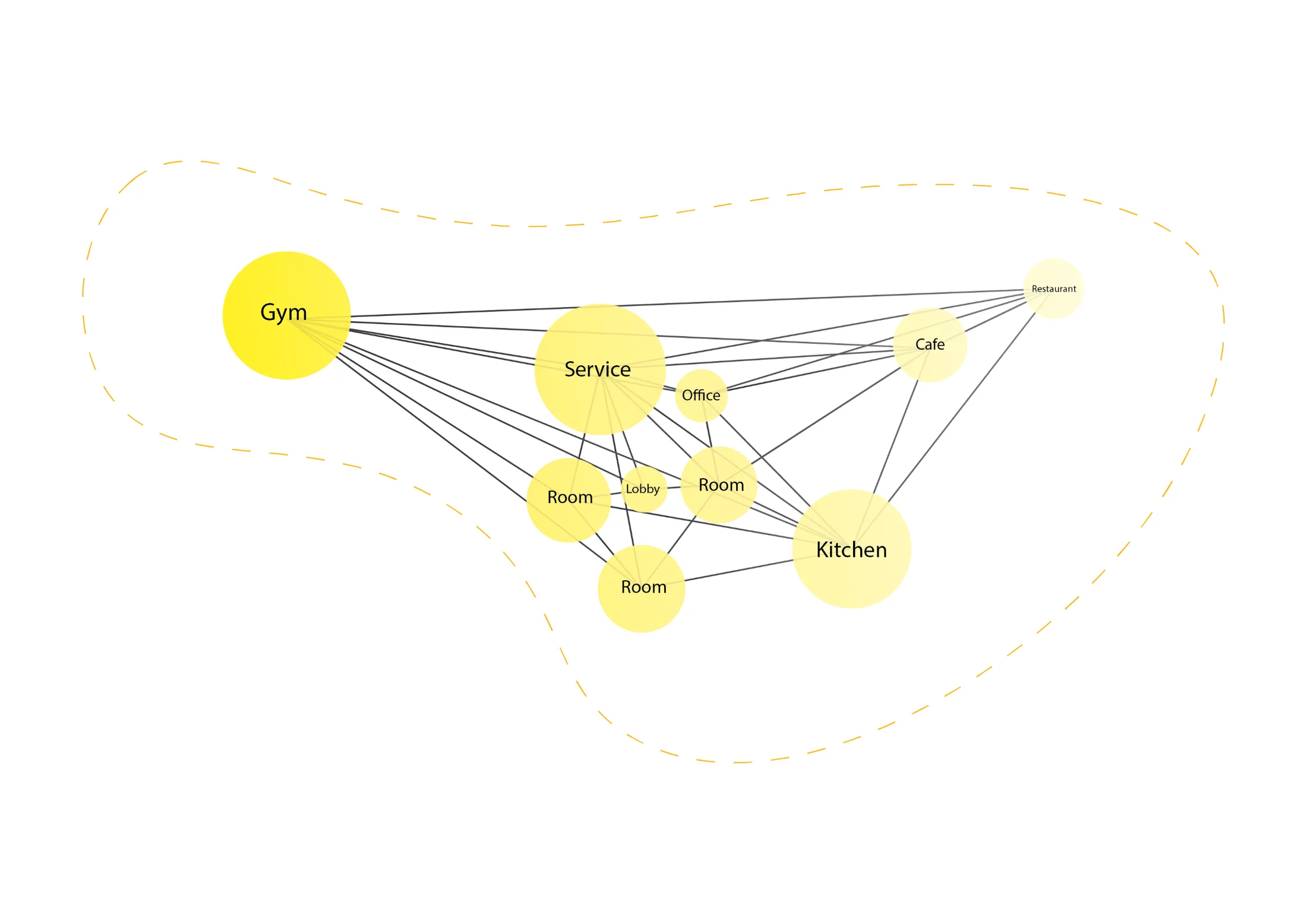

Program network on white background
Program network, light

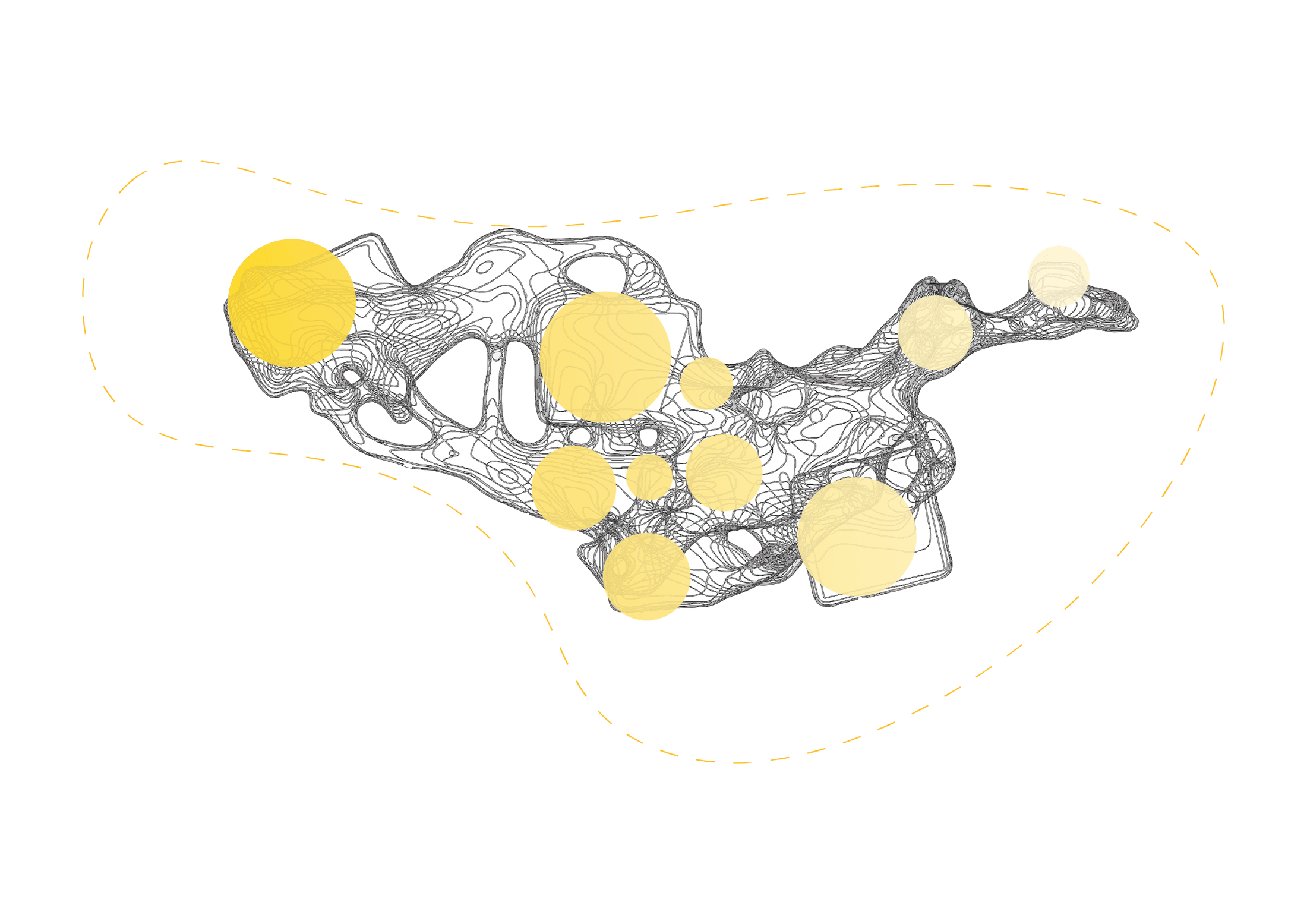

Program nodes overlaid on organic mesh
Network on mesh

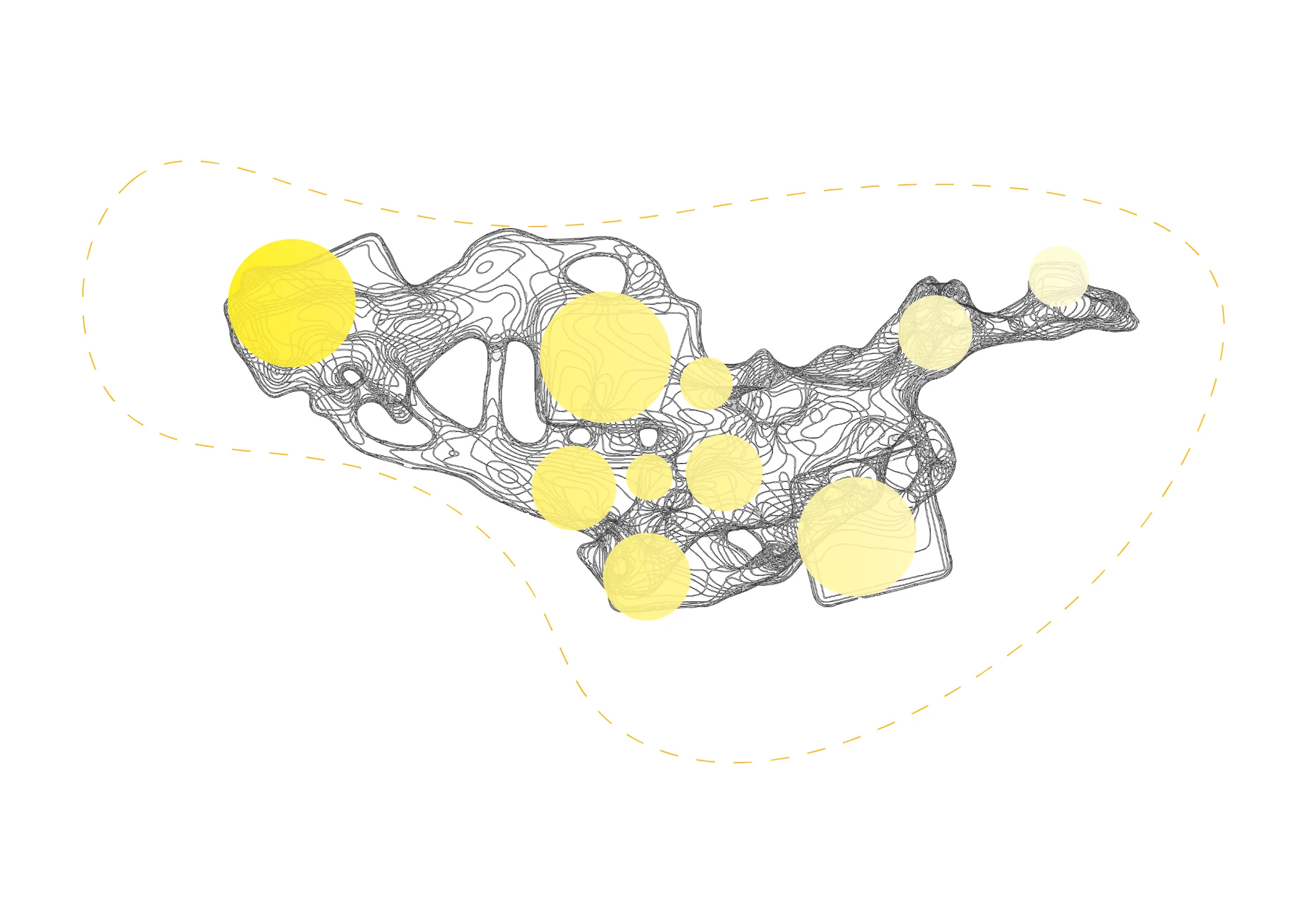

Program nodes on mesh variant
Network on mesh 02

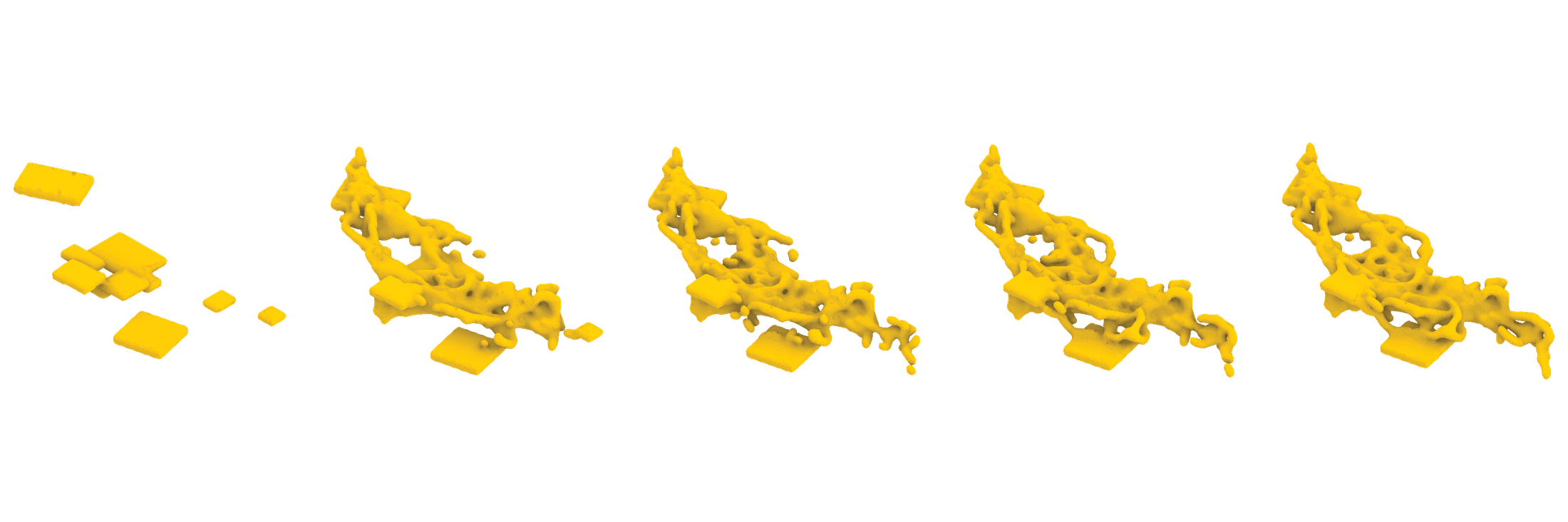

Five-stage slime-mold form evolution
Form-finding sequence
